VSOL
1x 2.5GbE + 1x GbE XPON ONT (V2802RH)
1x 2.5GbE + 1x GbE XPON ONT (V2802RH)
Couldn't load pickup availability
Share

Fully unlocked XPON ONU in a compact box form factor, offering two RJ45 Ethernet ports with a maximum speed of 2.5 Gbps. Also known as VSOL V2802RH or Photon PTF2282.
Vastly superior performance compared to TP Link, Styrotech, Digisol, and Netlink ONUs. Both APC (Green) and UPC (Blue) options are available. Power and LAN cable are included in the box.
Note:
Setting up an ONU is an advanced process that is better left to your ISP. For using your own router to prevent Double NAT, enable port forwarding, etc., consider asking the ISP to enable Bridge mode on your existing ONU.
We cannot guarantee compatibility of ONUs without direct access to the OLT for non-ISP customers. In such cases, we offer only limited support.
As seen in:
Specifications
Hardware Parameters |
|
| Dimension | 100mm x 92mm x 29.5mm (L x W x H) |
| Net Weight | 0.13 KG |
| Operating Condition |
Operating temp: -10 ~ +55°C Operating humidity: 5 ~ 95% (non-condensed) |
| Storing Condition |
Storing temp: -40 ~ +70°C Storing humidity: 5 ~ 95% (non-condensed) |
| Power Adapter | DC 12V, 0.5A, external AC-DC power adaptor |
| Interfaces | 1 x 2.5GbE + 1 x GE (Option for V2802RH) |

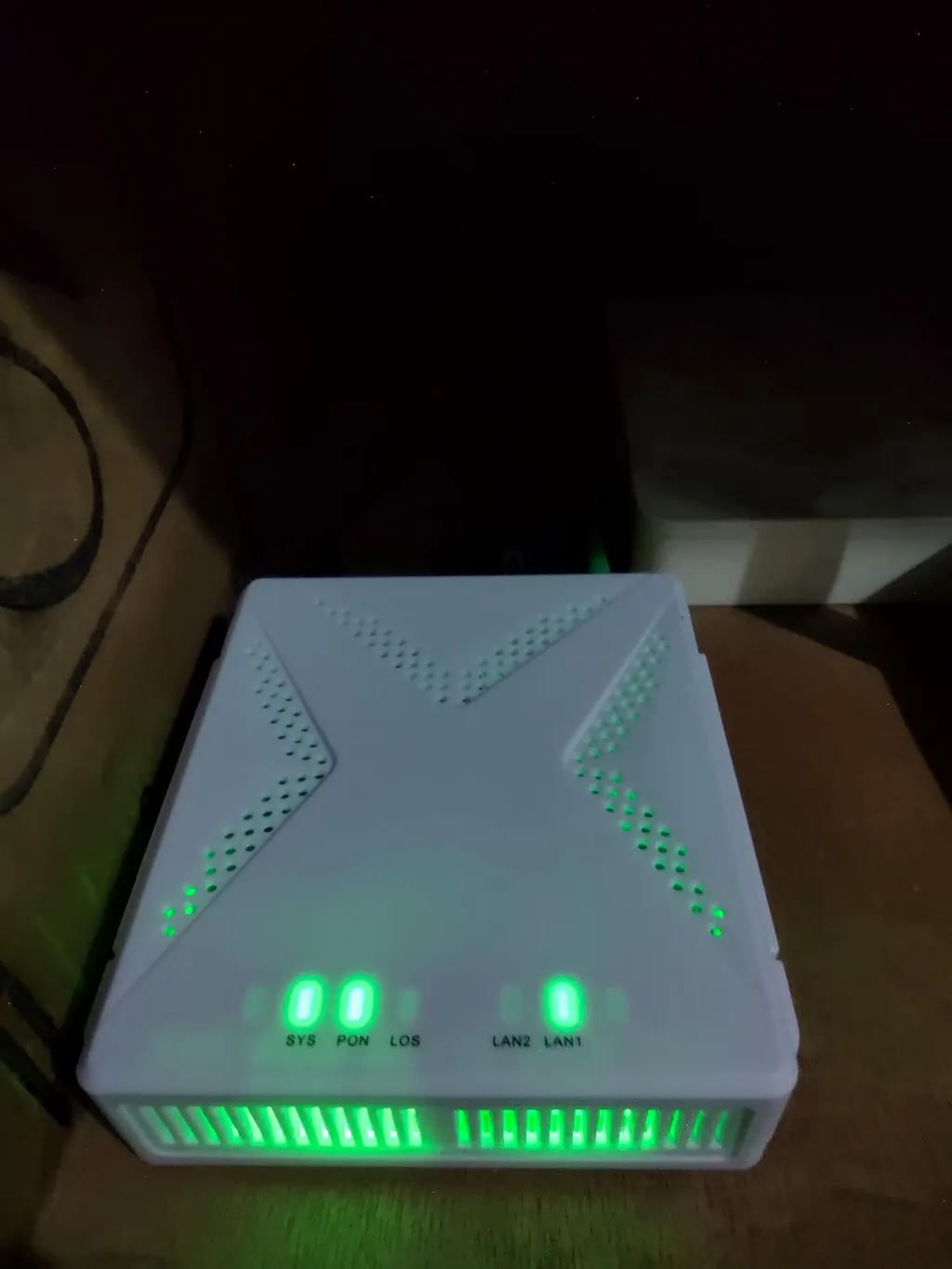

| Indicators | POWER, PON, LOS, WAN, LAN1, LAN2 |
Interface Parameters |
|
| PON Interface | 1 XPON port (EPON PX20+ & GPON Class B+) |
| SC single mode, SC/APC or SC/UPC connector | |
| TX optical power: 0 ~ +4 dBm | |
| RX sensitivity: -27 dBm | |
| Overload optical power: -3 dBm (EPON) or -8 dBm (GPON) | |
| Transmission distance: 20 KM | |
| Wavelength: TX 1310nm, RX 1490nm | |
| LAN Interface | 1 x 2.5GbE + 1 x GbE, auto-negotiation RJ45 connectors |
| Button | Reset |
Technical Data |
|
| XPON Mode | Dual mode, Auto-access to EPON / GPON OLT |
| Uplink Mode | Bridging and Routing Mode |
| Abnormal Protection | Detecting Rogue ONU, Hardware Dying Gasp |
| Firewall | DDOS, Filtering Based on ACL / MAC / URL |
| Basic | Support MPCP discovery |
| Support authentication Mac/Loid/Mac + Loid | |
| Support Triple Churning | |
| Support DBA bandwidth | |
| Support auto-detecting, auto-configuration, and auto firmware upgrade | |
| Support SN / PSW / Loid / Loid + PSW authentication | |
| Alarm | Support Dying Gasp |
| Support Port Loop Detect | |
| Support Eth Port LOS | |
| LAN | Support Port rate limiting |
| Support Loop detection | |
| Support Flow control | |
| Support Storm control | |
| VLAN | Support VLAN tag mode |
| Support VLAN transparent mode | |
| Support VLAN trunk mode (max 8 VLANs) | |
| Support VLAN 1:1 translation mode (≤8 vlans) | |
| Auto VLAN detection | |
| Multicast | Support IGMPv1 / v2 / Snooping |
| Max Multicast VLAN 8 | |
| Max Multicast Group 64 | |
| QoS | Support 4 queues |
| Support SP and WRR | |
| Support 802.1P | |
| L3 | Support IPv4 |
| Support DHCP / PPPOE / Static IP | |
| Support Static route | |
| Support NAT | |
| Management | Support CTC OAM 2.0 and 2.1 |
| Support ITUT984.x OMCI | |
| Support TR069 / WEB / TELNET / CLI | |
VSOL V2802RH or Photon PTF2282 (SC/APC/Green) is working well so far with my Alliance Broadband all though there's no VSOL brand name written anywhere in the ONU itself or in the product box. I'm Using a 0.5 Cat8 cable to my router. I'm getting 1-2 ms on default gateway ping to my ISP as always. My previous ONU GX Earth 1000R (SC/APC) had RX power -18.72 dBm and TX 2.30 dBm and TP Link XZ000-G7 (SC/APC) had RX -18.30 dBm and TX 1.70 dBm. With VSOL V2802RH, I'm getting RX -18.74 dBm and TX 2.90 dBm, so better TX power (Better TOSA) and running way cooler (38c) than my previous ONUs. TP Link XZ000-G7 actually uses slightly modified 'Super PIN-TIA' optical receiver (Better ROSA) than any normal PX20+ and Class B+ standard PIN-TIA as this VSOL V2802RH has, that's probably the reason it has better RX sensitivity. I also noticed this VSOL ONU also takes slightly longer time to boot.
Return Update :- Unfortunately i had to return this item as i noticed some connections loss even continuously with my ISP OLT, Note, this may not happen with your ISP OLT. Customer care was very fast to reply and initiated return and refund in time. I had a really humble and great experiences with customer care which i presuming it was Paul, who is generous enough to give me full refund which he didn't need to do that and, i thank him for that. Anyways, if you have any hesitation about this website as if it is genuine or not because i had, i will 100% recommend them now. Thanks Paul Jacob and Techtellectual for the product and initiate everything after that on time.
Good and trusted website

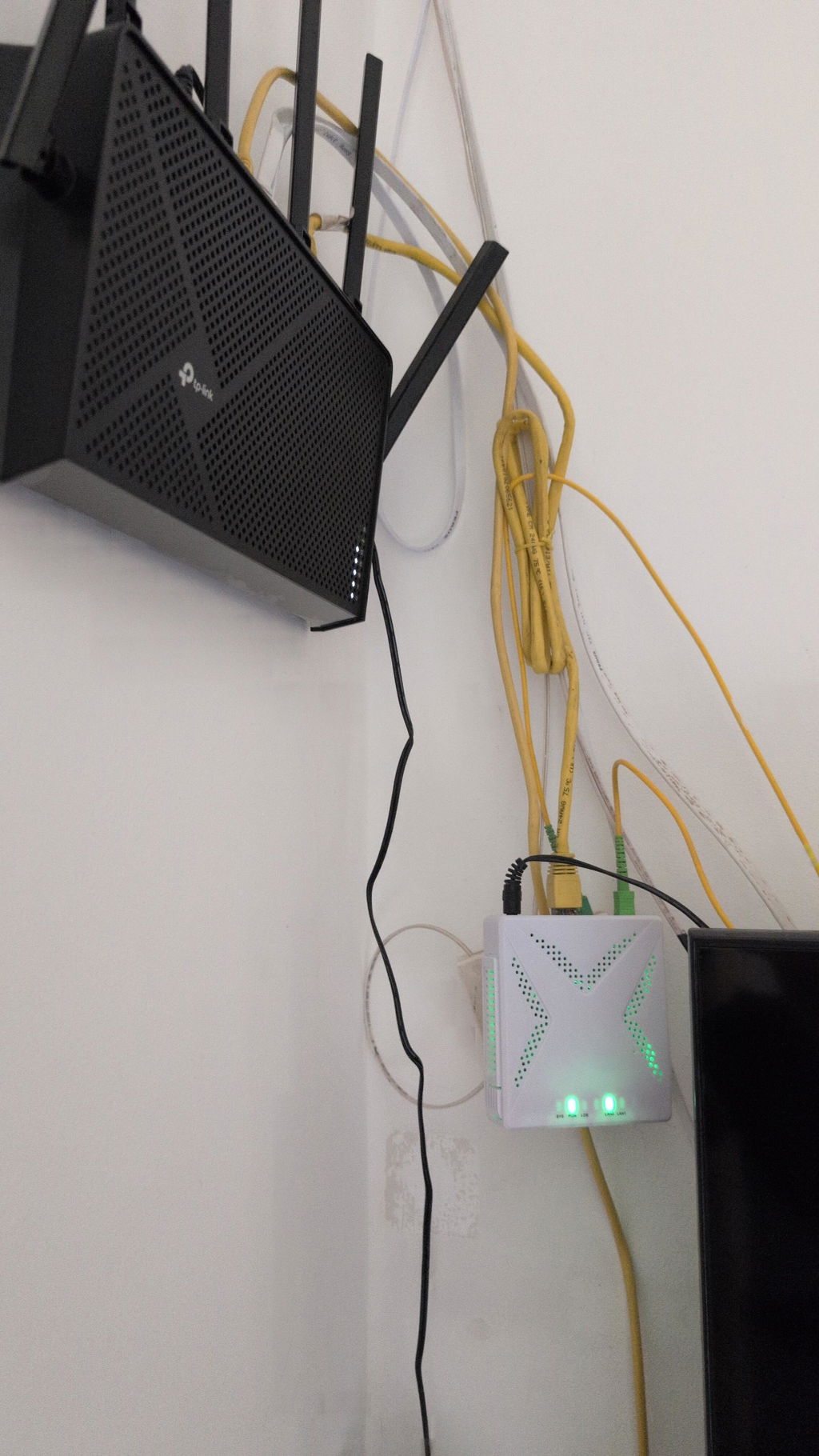

Shipping and service are great. Using it with Asianet ISP. Works without any issue
Shipping and service are great. Using it with Asianet ISP. Works without any issue.
The service and shipping speed were excellent. Thank you, Paul, it was a pleasure to shop at your online store. I look forward to purchasing more items.
