RTL8156BG 2.5G USB Ethernet Dongle

Rs. 999.00

Sale Sold out

Price Excluding GST. Shipping calculated at Checkout

Connector Type A Type C

For B2B invoice please add GSTIN in cart page!

Warranty: 7-Day Testing Warranty

Returns: 7-day Paid Return Policy

View full details

Introducing the compact RTL8156BG 2.5 Gigabit USB Ethernet adapter, a simple way to add fast wired networking to laptops, mini PCs, tablets and desktops that only have 1 GbE or no Ethernet port at all. Built on the Realtek RTL8156BG chipset, it delivers up to 2.5 Gbps over a standard Cat5e or better cable and is backward compatible with 1G and 100M networks.

Note: Select the connector that matches your device: USB Type-A or USB Type-C. For the full 2.5 Gbps, connect it to a USB 3.0 (5 Gbps) or faster port and use a 2.5 GbE-capable switch or router.

Key Features

2.5GbE performance built on the Realtek RTL8156BG chipset
Backward compatible with 1G and 100M Ethernet
Plug-and-play on most modern operating systems (Windows, macOS, Linux); a driver may be needed on some systems

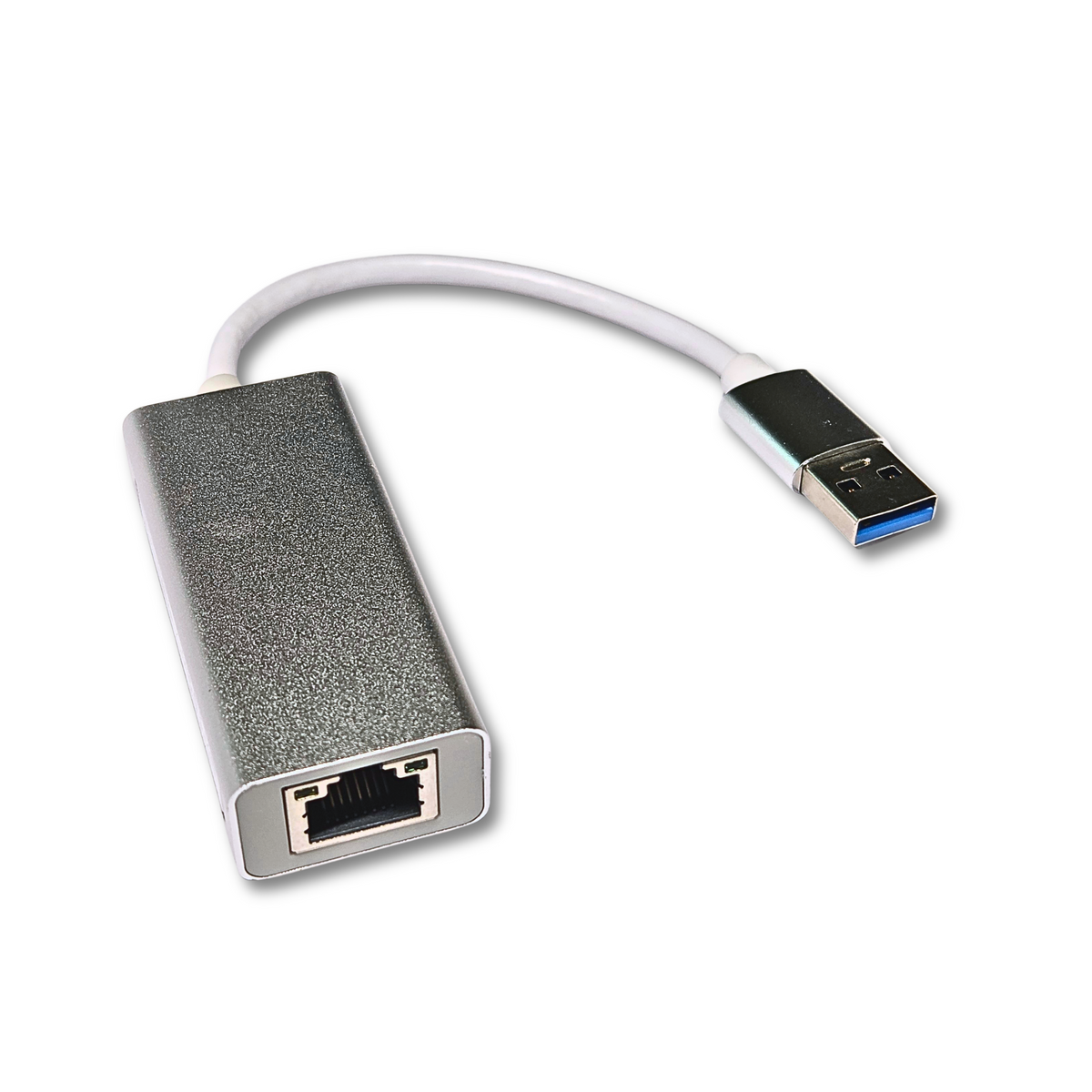

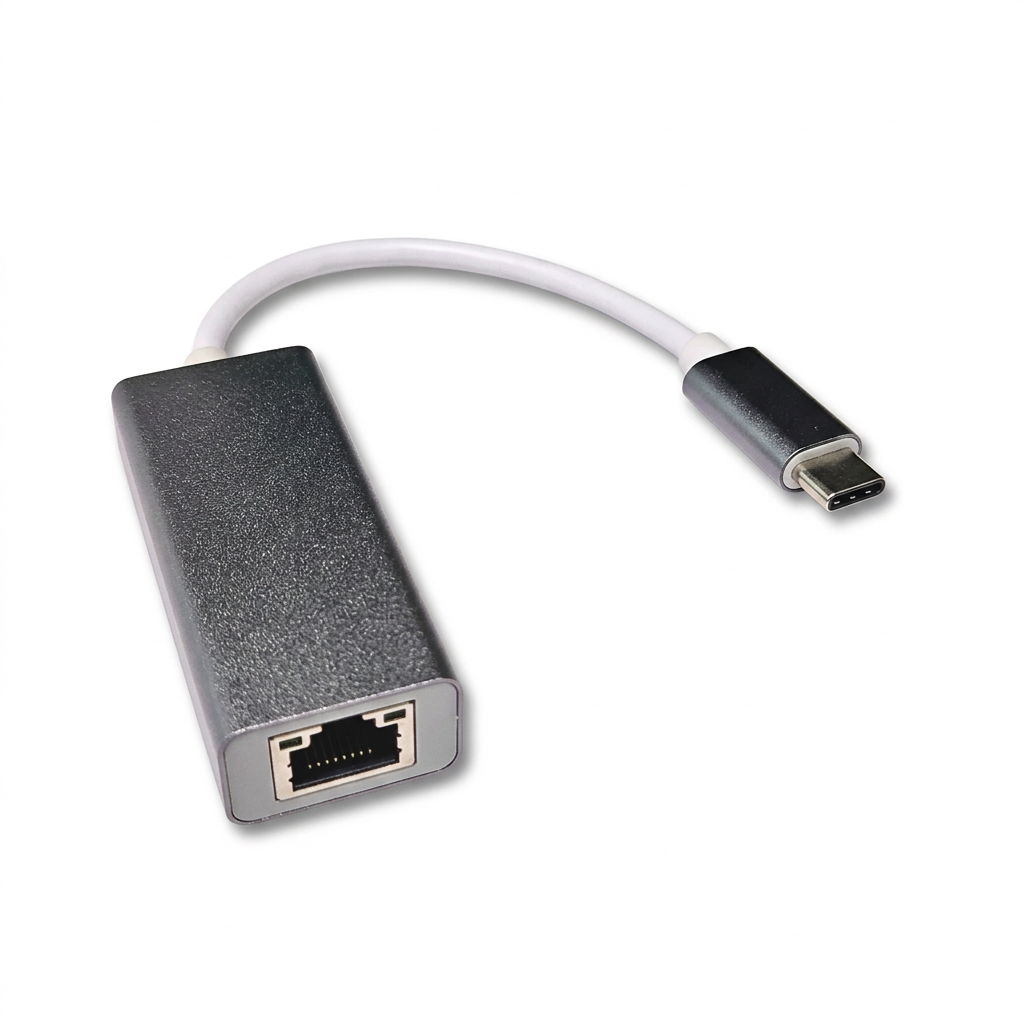

Available in USB Type-A and USB Type-C versions
Bus-powered, no external adapter needed

Specifications

Specifications
Chipset	Realtek RTL8156BG
Standard	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3az
Ethernet Speed	2.5Gbps / 1Gbps / 100Mbps / 10Mbps (auto-negotiation)
Host Interface	USB 3.0 (5Gbps) – Type-A or Type-C, as selected
Network Port	1 x RJ45
Cable Support	Cat5e or better, up to 100m
Power	USB bus-powered, no external adapter
System Support	Windows 10/11, macOS, Linux

Package Includes

RTL8156BG 2.5G USB Ethernet Dongle x1
