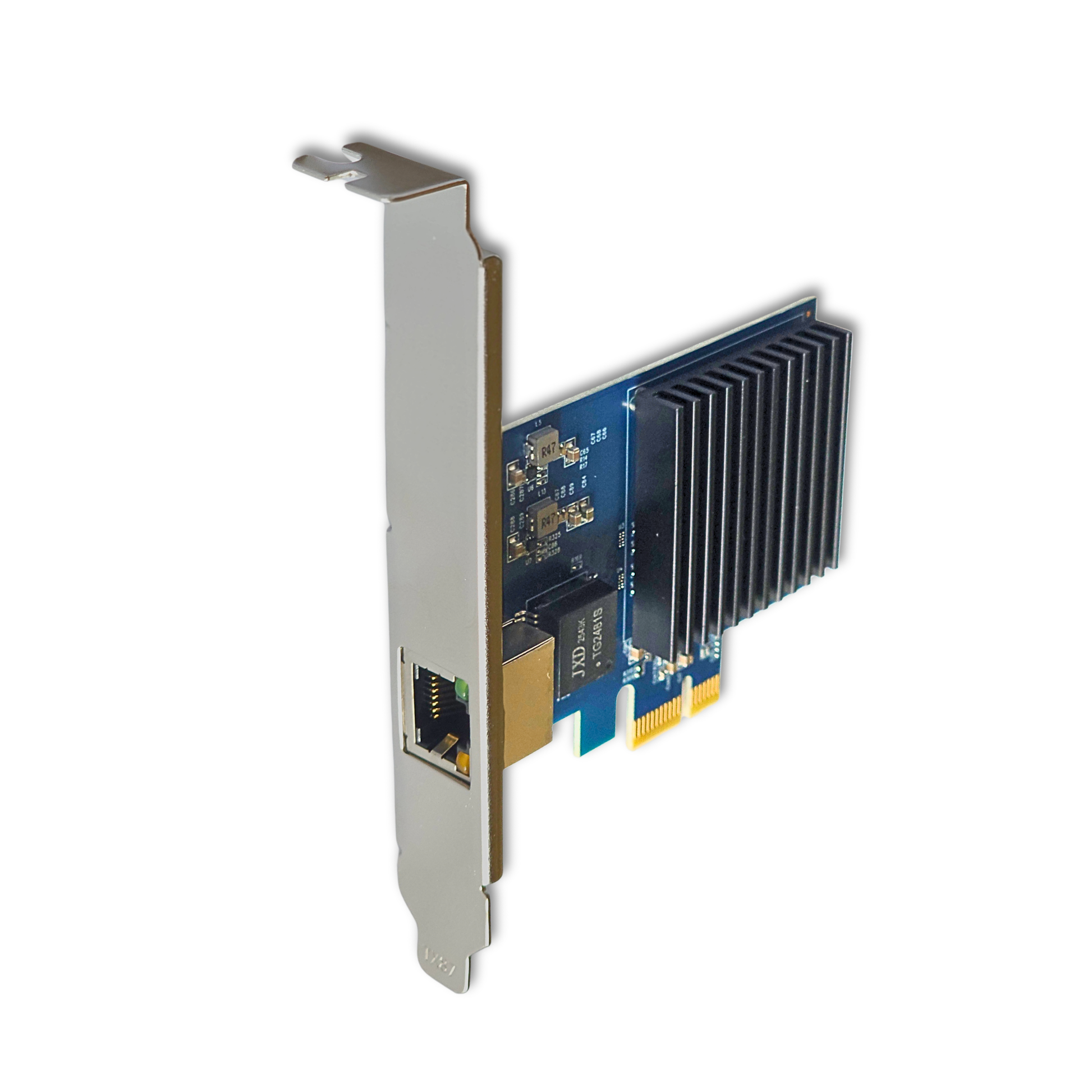

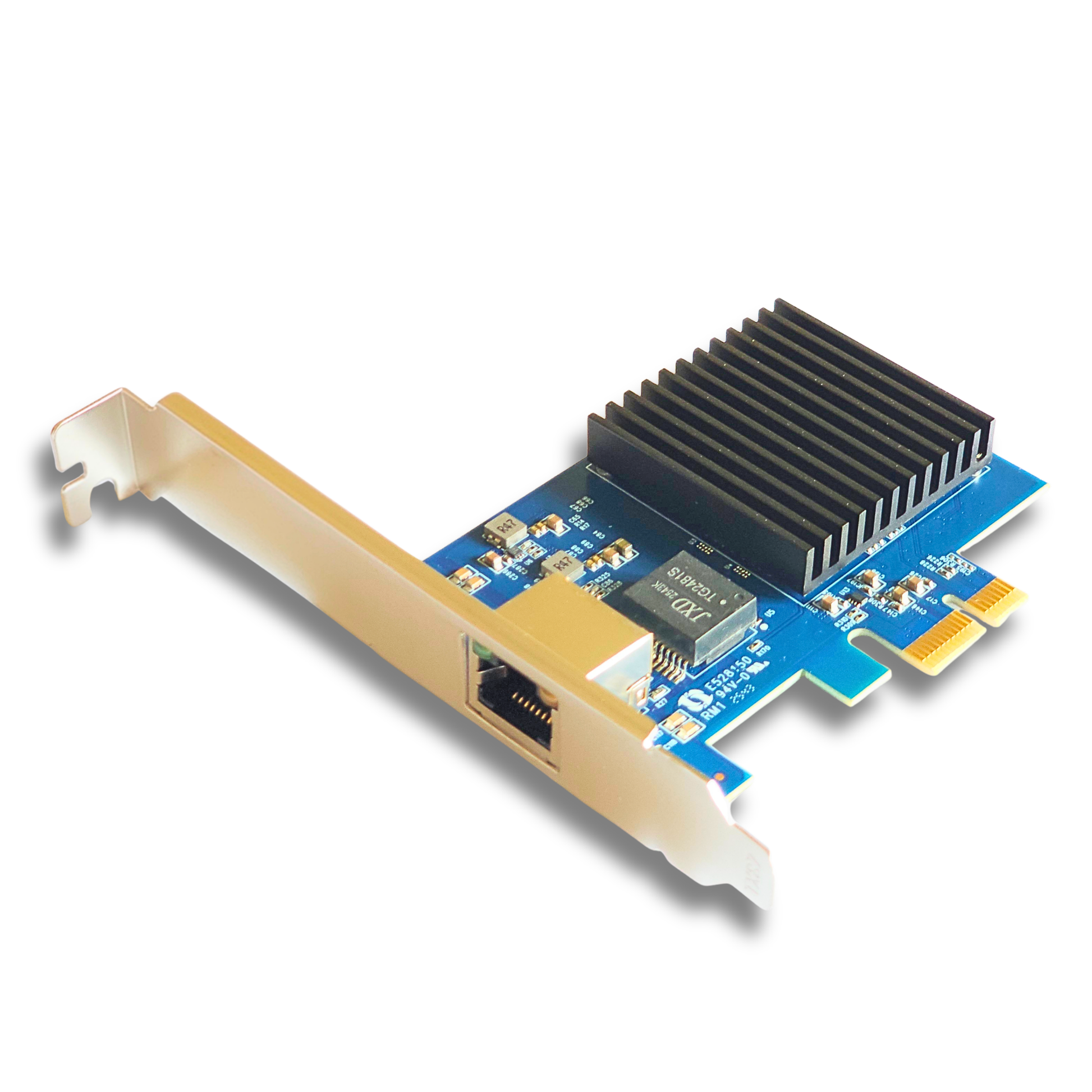

Introducing the RTL8127, the latest generation of low-cost and low-power 10 Gigabit Ethernet-capable network interface cards. The PCIe Gen 4 speeds allow these cards to support 10GbE over a single x1 interface, making them ideal for use in PCs, Workstations, NAS, and Servers without taking up valuable PCIe lanes on modern motherboards. The RTL8127 also supports Wake on LAN (WOL) to wake your device using magic packets.
Note: PCIe Gen 4 support on the x1 lane host device is necessary for 10GbE support!
Features
- Multi-Gigabit Ethernet connectivity with six network speeds: 10G, 5G, 2.5G, 1G, 100Mbps, 10Mbps

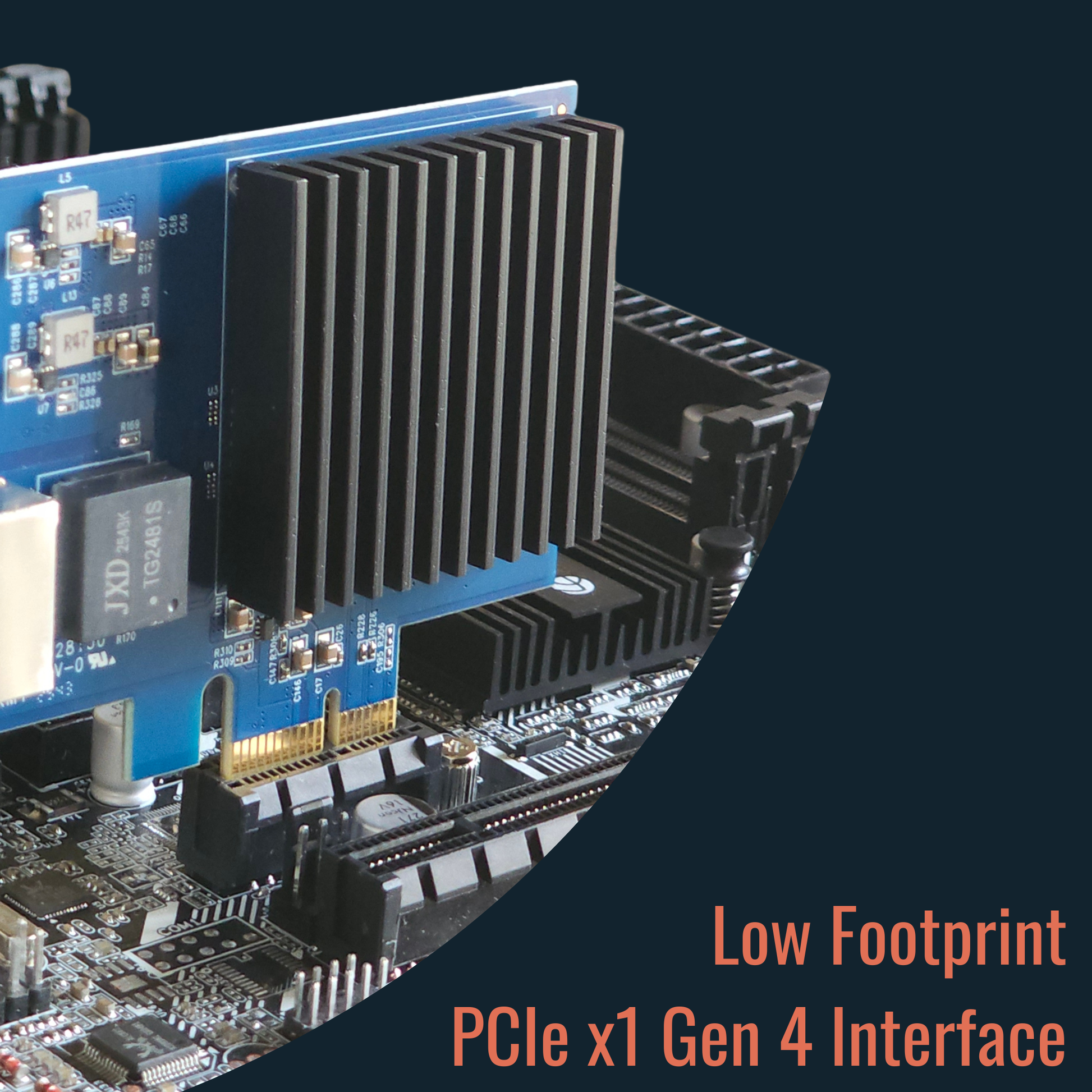

- Compliant with PCI Express Rev 4.0 specification, using PCIe x1 (or higher) slot
- Supports 10Gbps with a 100m Cat 6a cable and 5Gbps/2.5Gbps/1Gbps/100Mbps/10Mbps with a 100m Cat5e/Cat 6 cable
- Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz and IEEE 802.3an standards
- Supports IEEE 802.1Q VLAN tagging, and IEEE 802.3x Fully Duplex Flow Control
- Supports IEEE 802.1ad Q-in-Q VLAN
- Full and half Duplex support
- PXE network boot support
- Transmit/Receive on-chip buffer support
- Jumbo frame supports up to 16Kbytes
- Wake-on-LAN (WOL) support
- Complies with Microsoft and Linux platforms
