HSGQ

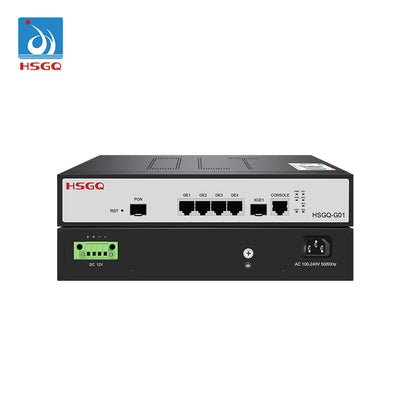

HSGQ-G01 Single Port Mini GPON OLT

Official Seller

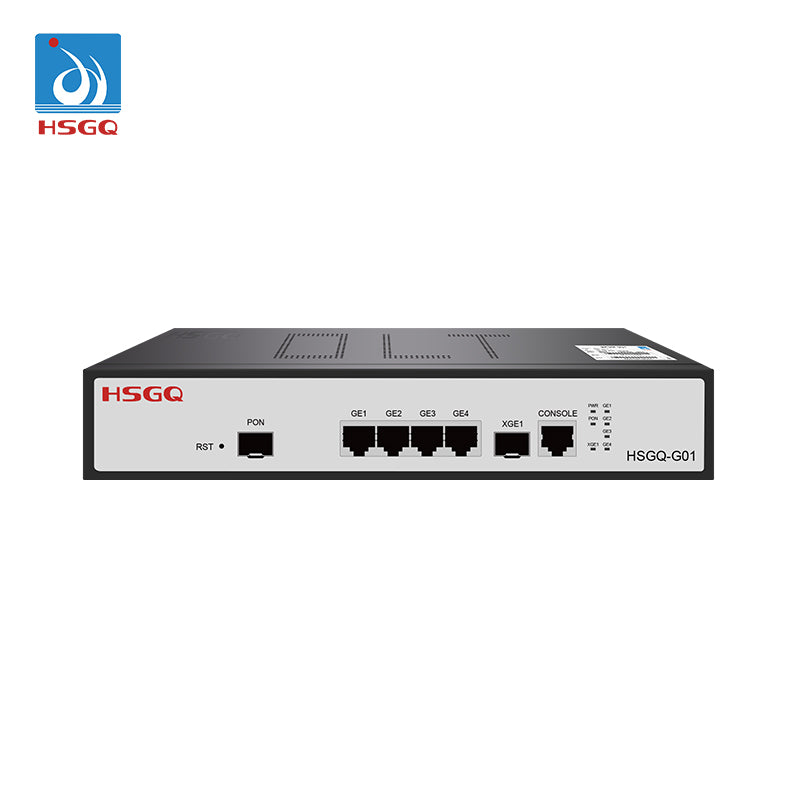

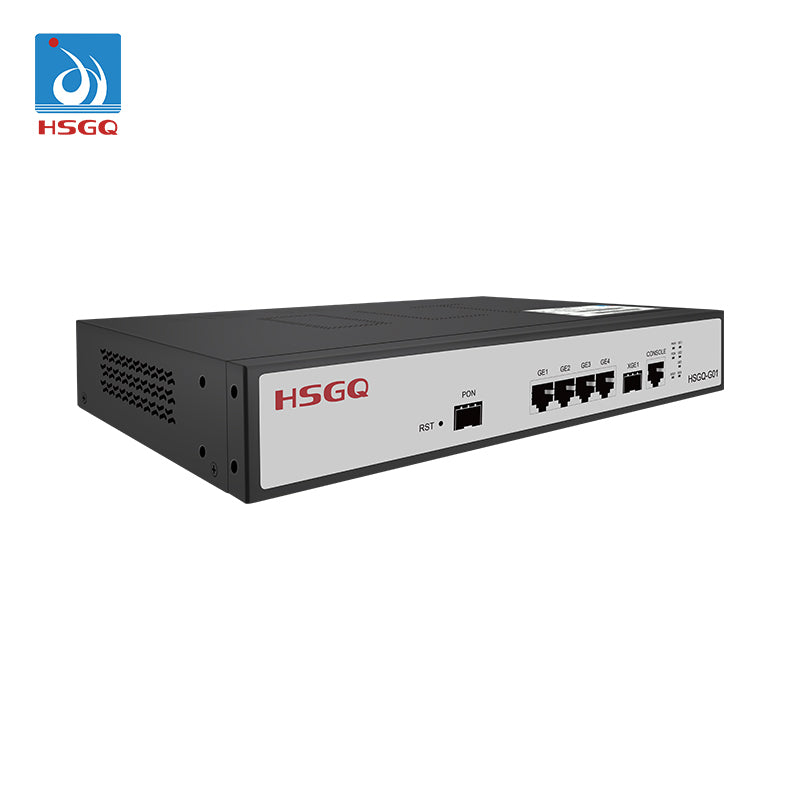

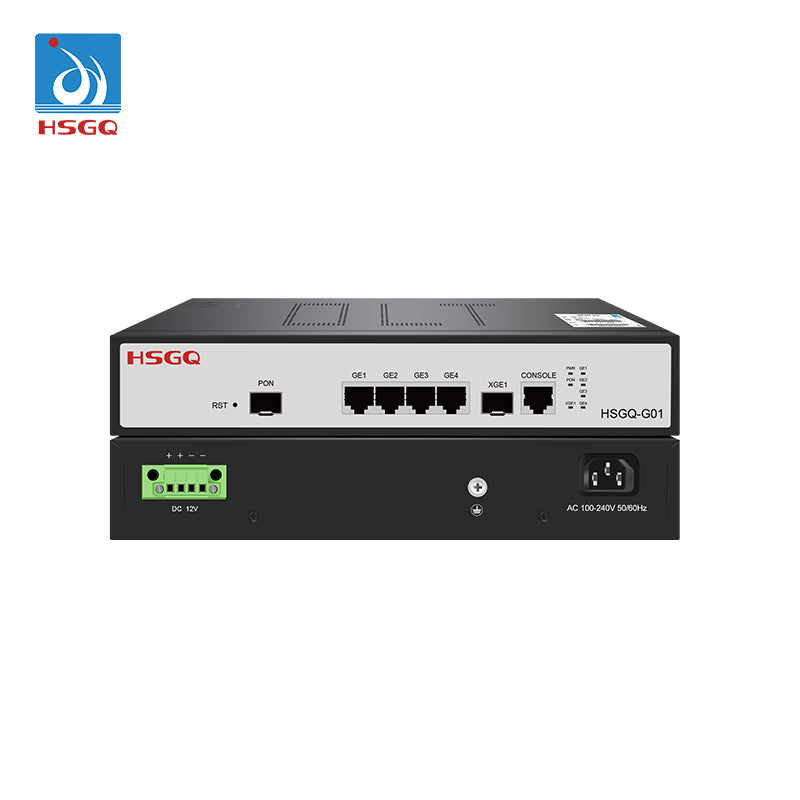

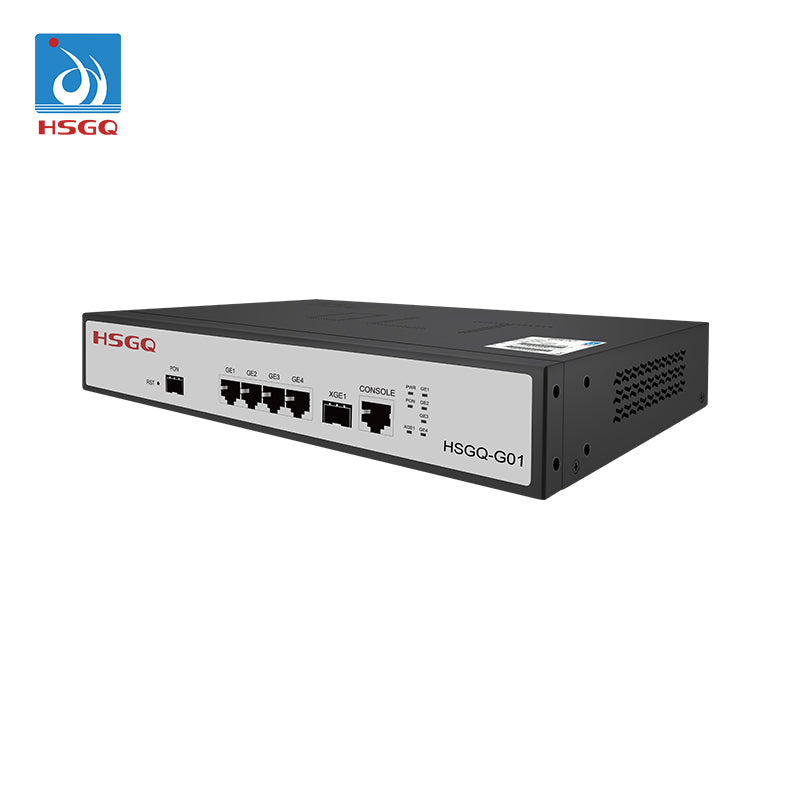

HSGQ-G01 Single Port Mini GPON OLT

Rs. 22,999.00
Rs. 22,999.00
Sale Sold out
Price Excluding GST. Shipping calculated at Checkout
For B2B invoice please add GSTIN in cart page!
Warranty: 1-year Limited Hardware Warranty
Returns: Non-Returnable
View full details

Introducing the HSGQ-G1 Mini OLT, the perfect OLT for micro ISPs looking for a reliable and easy-to-deploy solution. The compact 1U cassette form factor makes it easy to install in network closets with limited installation space.

Featuring a 10 Gigabit SFP+ port and four 1 Gigabit RJ45 ports, the HSGQ-G01 provides you with the flexibility to configure your upstream connections with different providers. The HSGQ-G01 supports multiple management methods, such as CLI (Command Line Interface), WEB GUI, SNMP, and Telnet.

The OLT comes loaded with a C+++/9db plus module and supports a maximum of 128 ONUs.

single pon for wifi gpon olt


Technical Specifications

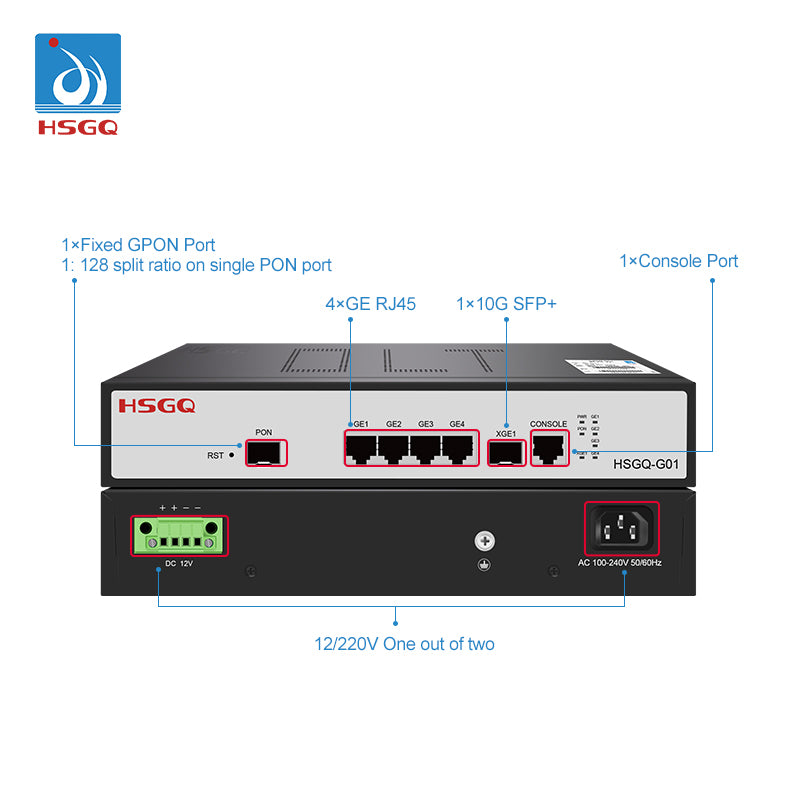

Item HSGQ-G01
Interface 1*GPON
4*GE RJ45
1*10G SFP+
PON
  • ITU.T G.984.x/G.988
  • Password authentication modes
  • Terminal access up to 20km on a single fiber
  • 1:128 split ratio on single PON port
  • DBA algorithm, and the particle is for 64Kbit/s
  • Standard OMCI management function
  • ONU batch software upgrade
  • PON port optical parameter detection
  • Auto registration ONU bound with default profile
Flash 16MB
DDR 512MB

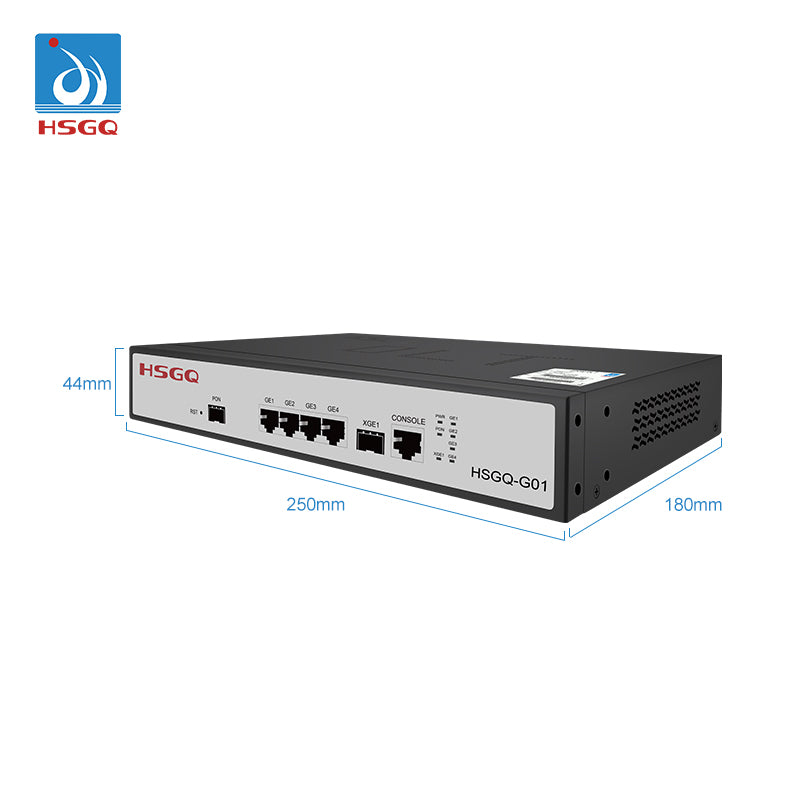

Size 250mm x 180mm x 44mm
Weight ＜5kg
Management Ports Console port
Environment Operating temperature: -10°C~55°C
Storage temperature: -40°C~70°C
Storage humidity: 5%~95% (non-condensing)
Power Supply DC 12V
Power Consumption ＜10W
Platform Management Features
  • Device list
  • Project management
  • Version Release
  • License management
  • Permission management
  • User management
Configuration and Management
  • CLI, WEB, SNMP, NMS and CLOUD
  • Software and bootrom Upgrade by TFTP and FTP
  • Chinese/English command prompt
  • Ping and Debug diagnosis
  • User/Log/Alarm management
Status
  • PON Status
  • Uplink Status
  • Performance Monitor
  • System Monitor
L2 Function
  • Support VLAN
  • Support Port mirror
  • Support Storm control
  • Support IGMP Snooping/proxy
  • Support MAC Black Hole
  • Support Port isolation
  • Encryption of PON port transmitting data
