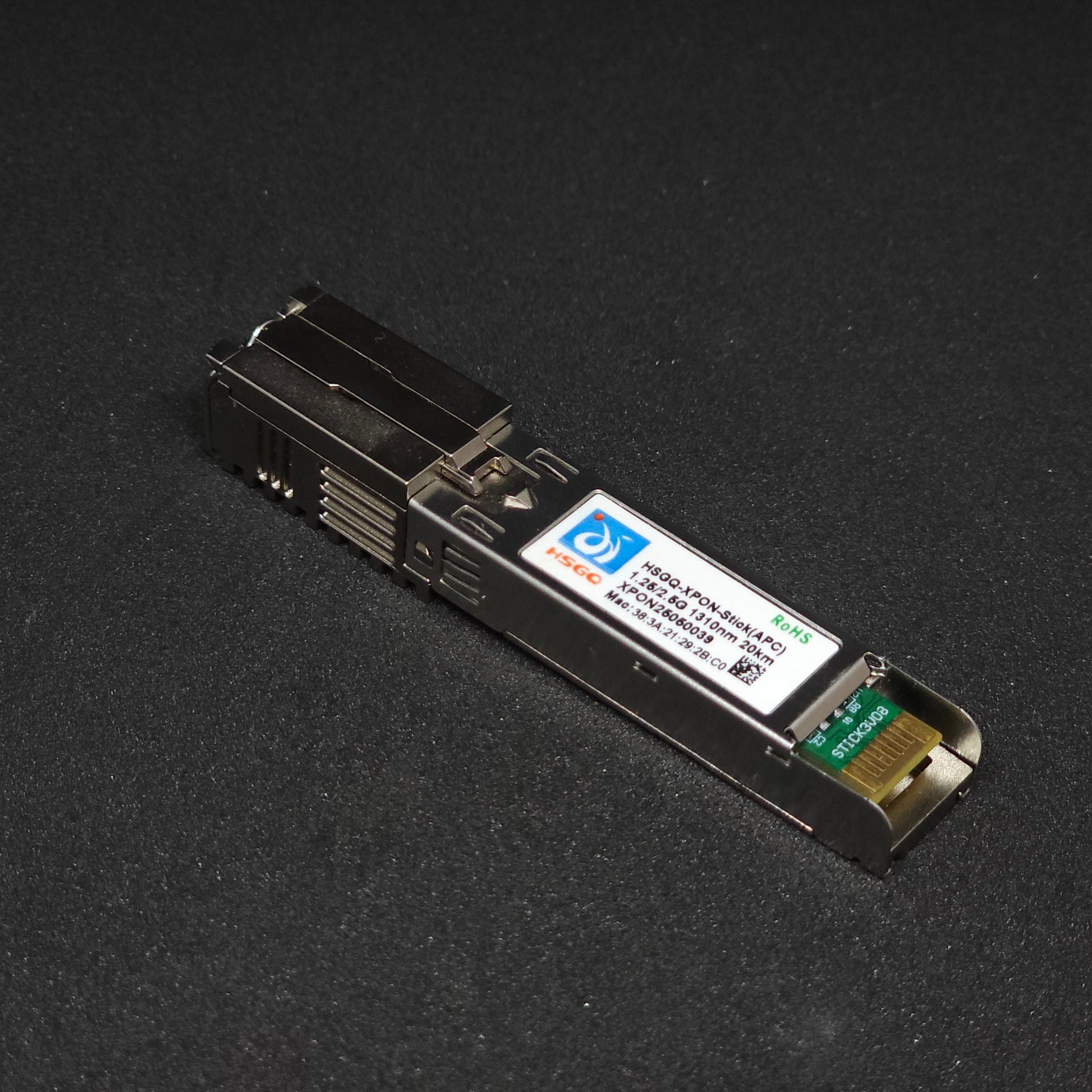

HSGQ 2.5GbE SFP XPON ONU Stick

Name: HSGQ 2.5GbE SFP XPON ONU Stick
Brand: HSGQ
Price: 4299.00 INR
Availability: InStock

Rs. 4,299.00

Sale Sold out

Shipping Policy

For B2B pricing and invoice, please Contact Us!

Fully unlocked and customizable XPON ONU from HSGQ in the SFP form factor that can achieve speeds of up to 2.5 Gbps. It requires an SFP port in a router, switch, or media converter. Also supports DDM for monitoring temperature and optical power.

As featured in:

Specifications

User interface	1*port
PON	Physical Interface: PON Port Type: SC
Size	8.26.875mm
Weight	<19g
Environment	Operating temperature: -40℃～85℃ (I Temp) Operating temperature: -0℃～70℃ (C Temp) Storage humidity: 5%～95% (non-condensing）
Power supply	3.3V
Power consumption	< 2.5W
PON Function	GPON/EPON adaptive
Mode	SFU Optionally support some functions of HGU(DCHP/PPPoE/NAT)
Configure MAC Address	Supported
Configure SN	Supported
Configure Vendor ID	Supported
Configure PVlD	Supported
DDMI	Supported
Management	Http/telent/SSH/TRO69
SFP MSA Standard	Supported
VLAN	VLAN transport transmission VLAN switch function

Features

1490 nm wavelength downstream, 1310 nm wavelength upstream
GPON: 2.5Gb/s line rate downstream, 1.25 Gb/s line rate upstream
EPON: 1.25Gb/s line rate downstream, 1.25 Gb/s line rate upstream
Complies with SFP Multi-Source Agreement (MSA) SFF-8074i
Digital Diagnostic Monitor(DDM)interface compatible with SFF-8472
Complies with ITU-T G.984.2, G.984.2 Amendment 1
Complies with ITU-T G.988 ONU management and control interface (OMCl)
Class laser safety standard IEC-60825 compliant
RoHS compliance

The product works!

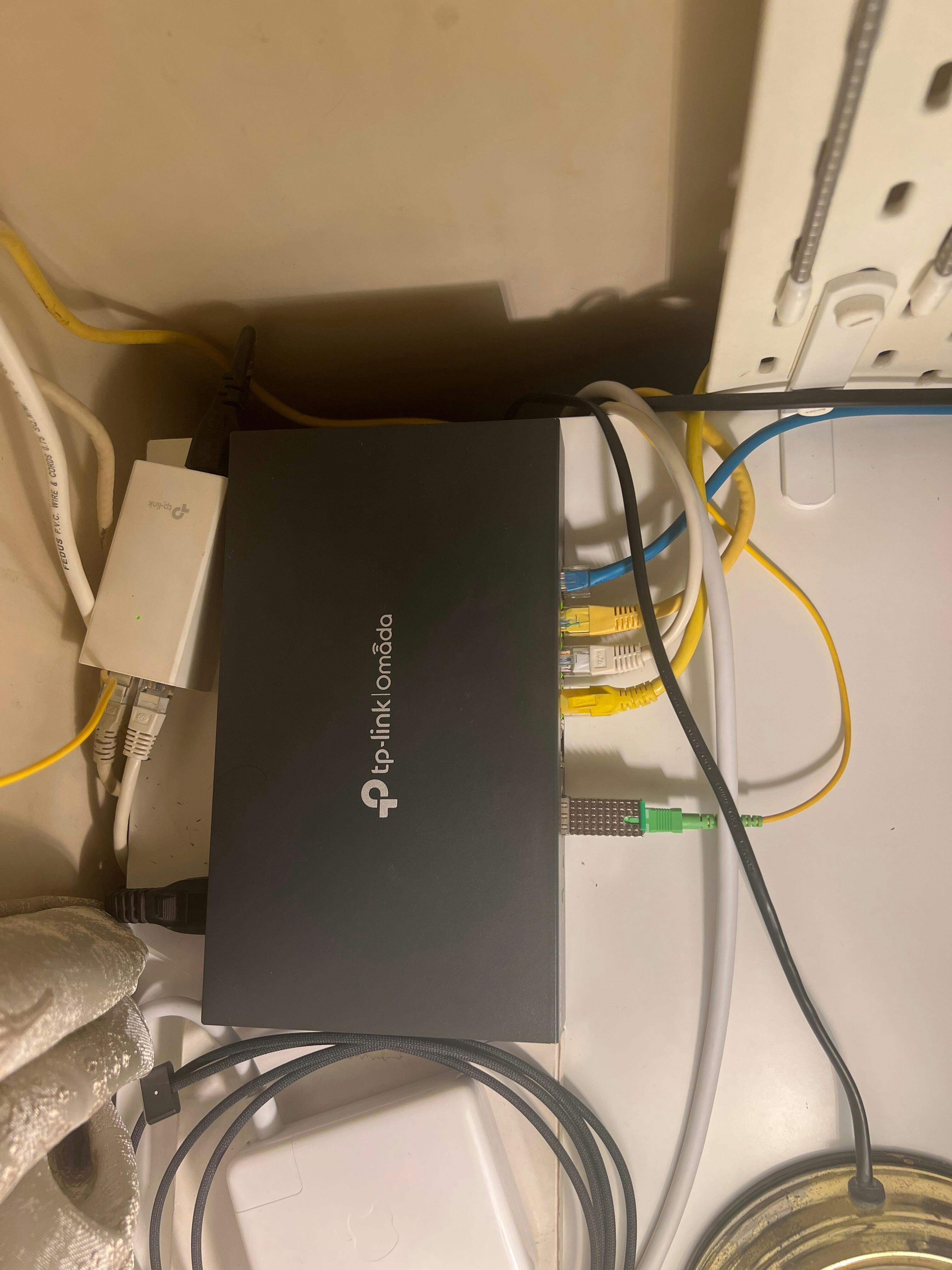

Pros: this thing is a charm: it boosted my internet speeds already by 200mbps /> than before I use a 1Gbps line with Airtel and it works like a charm after the installation!

For someone who doesn’t understand a lot about XPON or how Isp network work I think Paul will be a great help,

Not only he gave me the device hand to hand, but he handed me a switch as well as when the switch was dead on arrival due to some glitch he sent me a media converter over a Amazon purchase he made!

He also made sure that he has time taken out for support and was courteously helpful throughout the process of getting things working.

Cons: the thing needs a bit of a tech nack to get around.

Suggest a paid installation service, I look for more easier installation services that’s it.
No other cons really!

Paul, is an exceptional professional and a fantastic person to work with. He is much more than a typical reseller; his extensive knowledge and incredible after-sales support are invaluable. Paul spent three full days helping me diagnose an issue, and he is the only reason I was able to get my HSGQ device working. Without his assistance, it would have been completely useless. I would strongly recommend Paul to anyone in need of networking equipment.

Brilliant bit of kit. Discreet and helps you get rid of all the ISP bloatware and monitoring. The owner of the site, Paul, is a gem and helped me get it up and running. Needless to say, super duper recommended.
