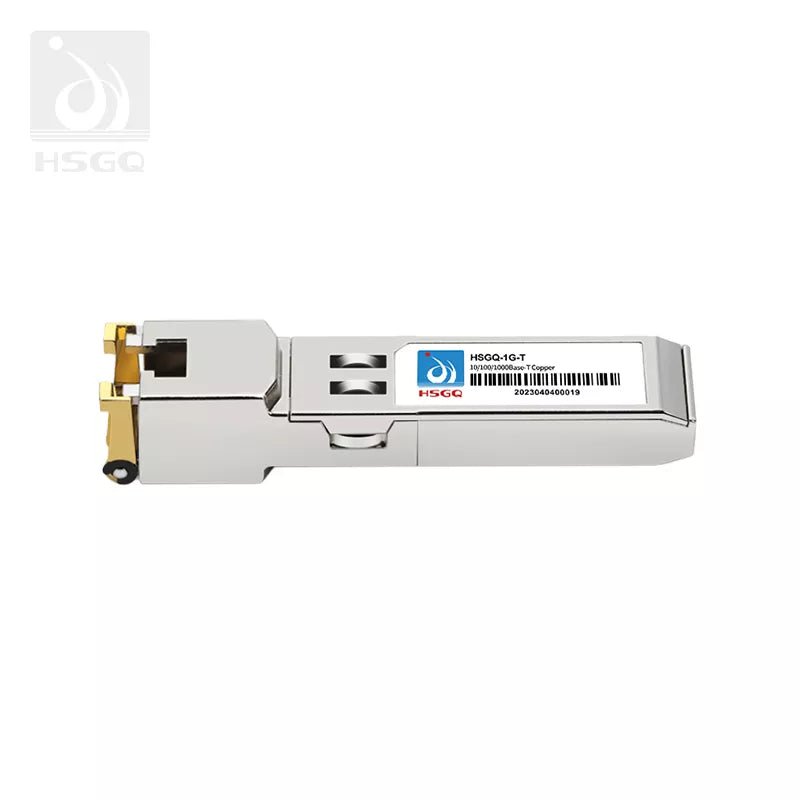

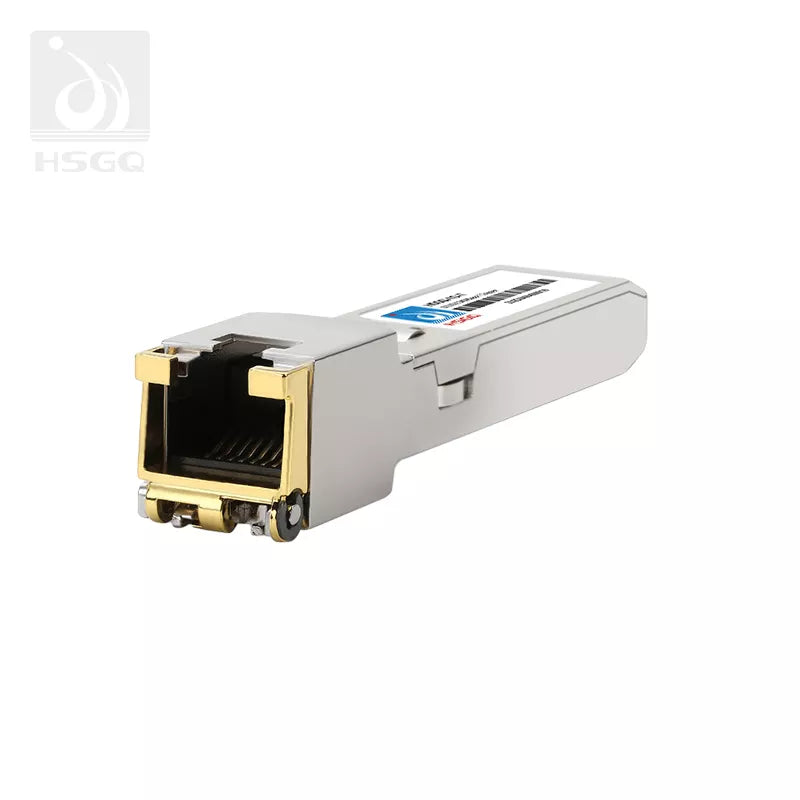

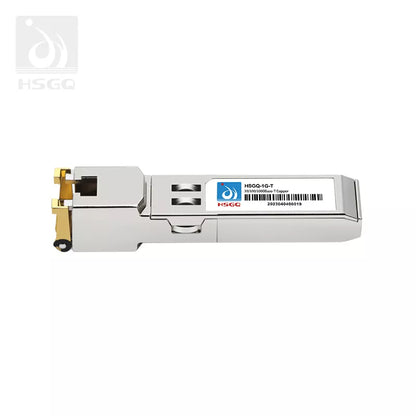

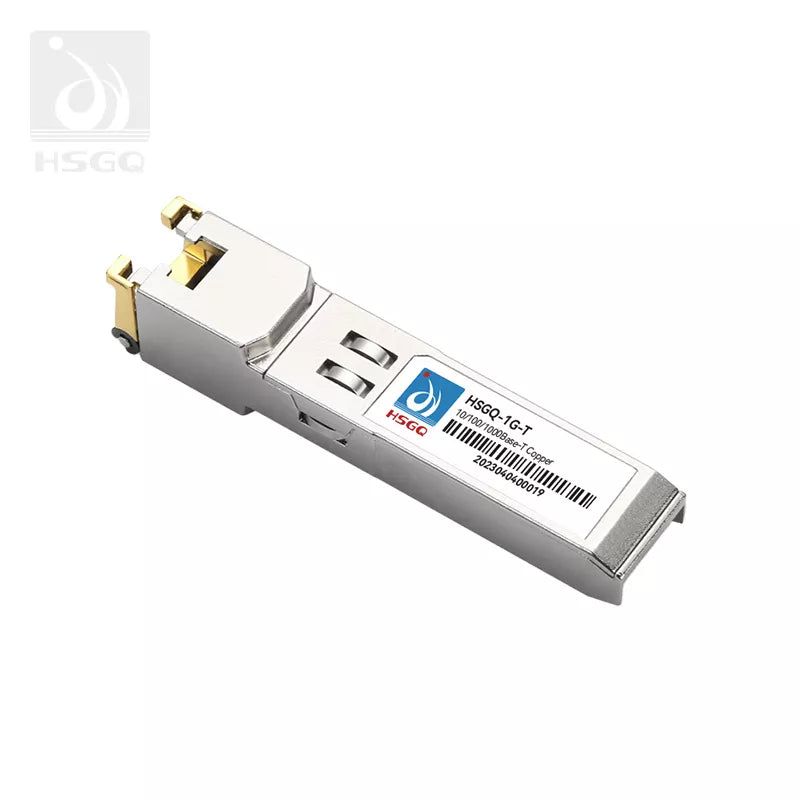

HSGQ 1000BASE-T SFP Copper 100m RJ-45 Transceiver Module

HSGQ-1G-T Copper Small Form Pluggable (SFP) transceivers are high-performance, cost-effective, and compliant with Gigabit Ethernet and 1000-BASE-T standards as specified in IEEE 802. 3-2002 and IEEE 802.3ab, supporting up to a 1000Mbps data rate over 100 meters reach over unshielded twisted-pair category 5 cable.

The module supports 1000 Mbps full-duplex data-links with 5-level Pulse Amplitude Modulation (PAM) signals. All four pairs in the cable are used with a symbol rate at 250Mbps on each pair. The module provides standard serial ID information compliant with SFP MSA, which can be accessed with the address of A0h via the 2-wire serial CMOS EEPROM protocol. The physical IC can also be accessed via 2 2-wire serial bus at address A0h.

The Techtellectual is the authorized reseller of HSGQ products in India.

Core Components

Select International Brand Components and Chip Material Suppliers

Thick Gold Plated Contacts

Enhanced Conductivity, Can be Repeatedly Plugged and Unplugged Use

Compatible with Mainstream Brands

Widely Compatible with Cisco, Huawei, H3C, TP-LINK, ZTE, Ruijie and Other Brands of Fiber Optic Equipment.
